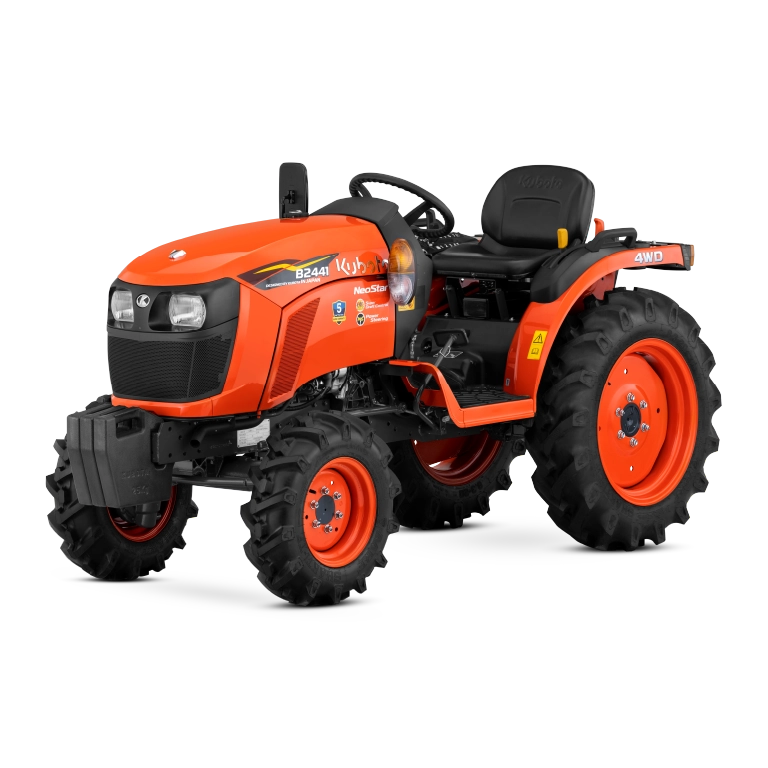

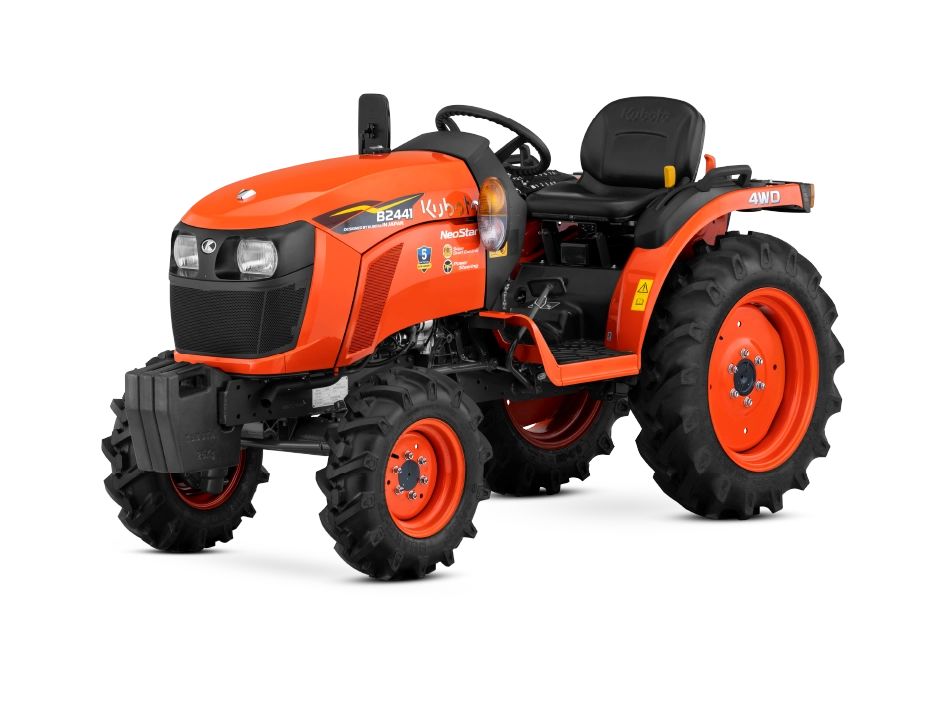

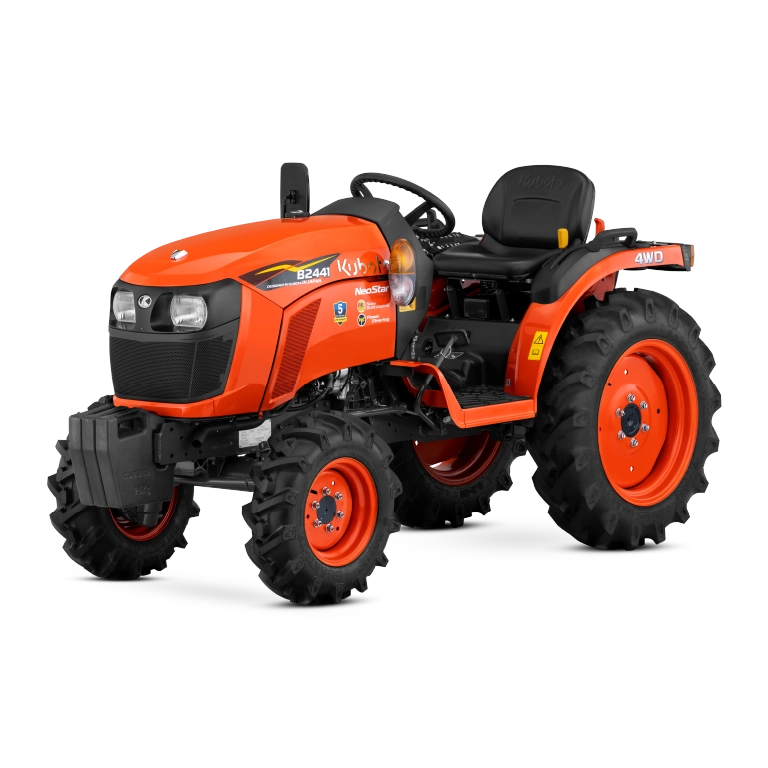

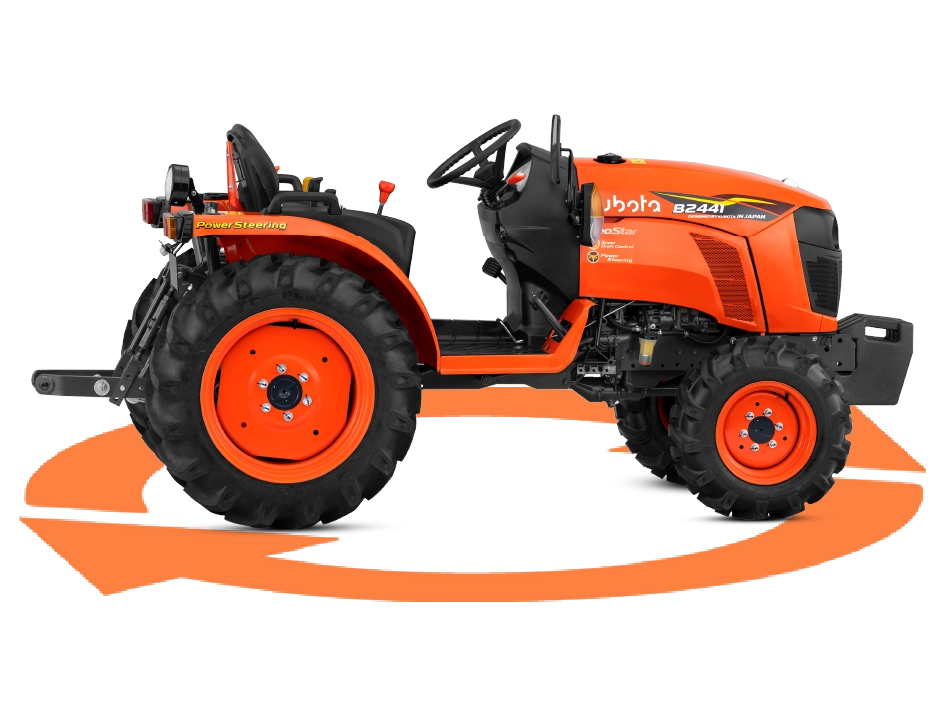

High-powered e-CVTS made of Japan engine of B2441 delivers right performance every time. Its lowest turning radius due to its 4WD system helps in variety of agricultural applications like rotavator, sprayer, cultivator when it comes to execute these in narrow spaces.
SUPER DRAFT CONTROL
Super Draft Control For Less Slippage and Automatic Depth Adjustment
This function contributes to a reduction of slippage when using such implements as cultivators that require strong traction. An additional advantage is that it is never necessary to adjust the depth of cultivation with the result that makes operations easier and more efficient.
2.1 M TURNING RADIUS
2.1 Meters Turning Radius For Movement In Narrow Spaces
With the turning radius for the B2441 being as tight as 2.1 m, movements in narrow places or between ridges are completed smoothly without any damage to crops.
4 WHEEL DRIVE
4x4 Driving System
4WD Tractor has more traction and driving power, which makes work more efficient.4WD helps in Faster cultivation, Quickens planting time with lesser soil compaction resulting in increase yield and profit compared to 2WD tractor.
Engine Power
16.3 kW Cat. (24 HP Cat.)
Maximum Torque
70 Nm
Rear Tyre Size
8.3 x 20 Inch
KUBOTA A211N
No. of Cylinders
3
Lift Capacity
750 Kg
Transmission Type
9F + 3R Gear Shift
OTHER SPECIFICATIONS
| Category | Specification |
|---|---|
| Transmission | |
| Clutch | Single |
| Fuel Tank | |
| Fuel Tank Capacity | 23 litres |
| Brake Types | |
| Brakes | Oil immersed |
| Steering Type | |
| Steering | Power Steering |
| PTO Type | |
| PTO | Standard 540 |
| Tyres | |
| Front Tyre Size | 17.78 cm x 30.48 cm) 7 inch x 12 inch |
| Rear Tyre Size | 21.08 cm x 45.72 cm) 8.3 inch x 18 inch |
| Axle Type | |
| Front Axle Type | 4 Wheel Drive Axle |
| Dimension | |
| Overall Width | 1105 mm |
| Overall Length | 2410 mm |
| Overall Height | 1280 mm |
| Ground Clearance | 325 mm |
| Wheel Base | 1560 mm |
