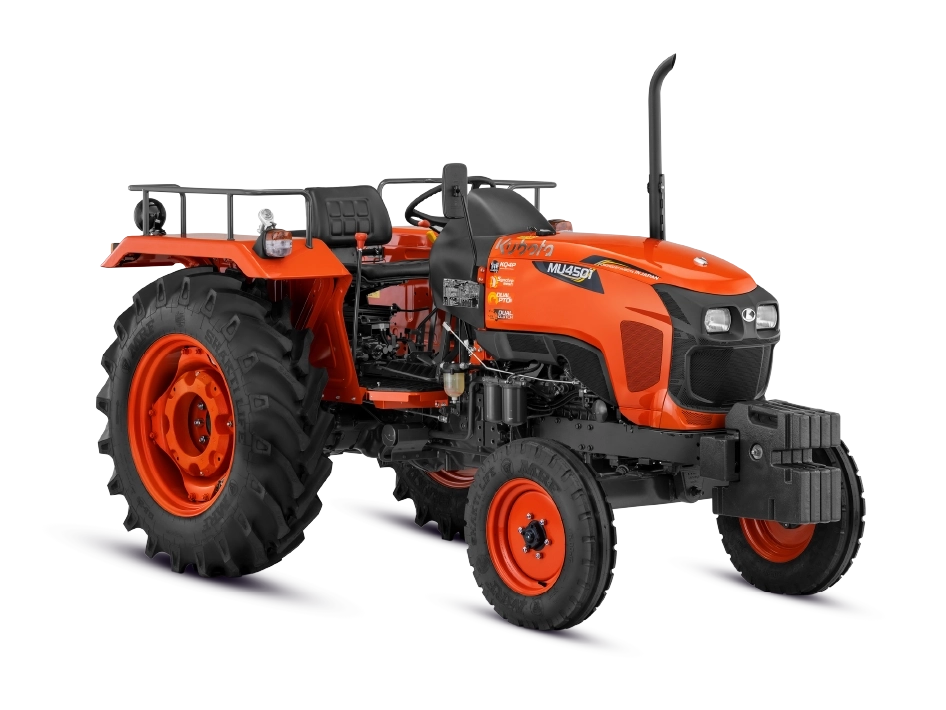

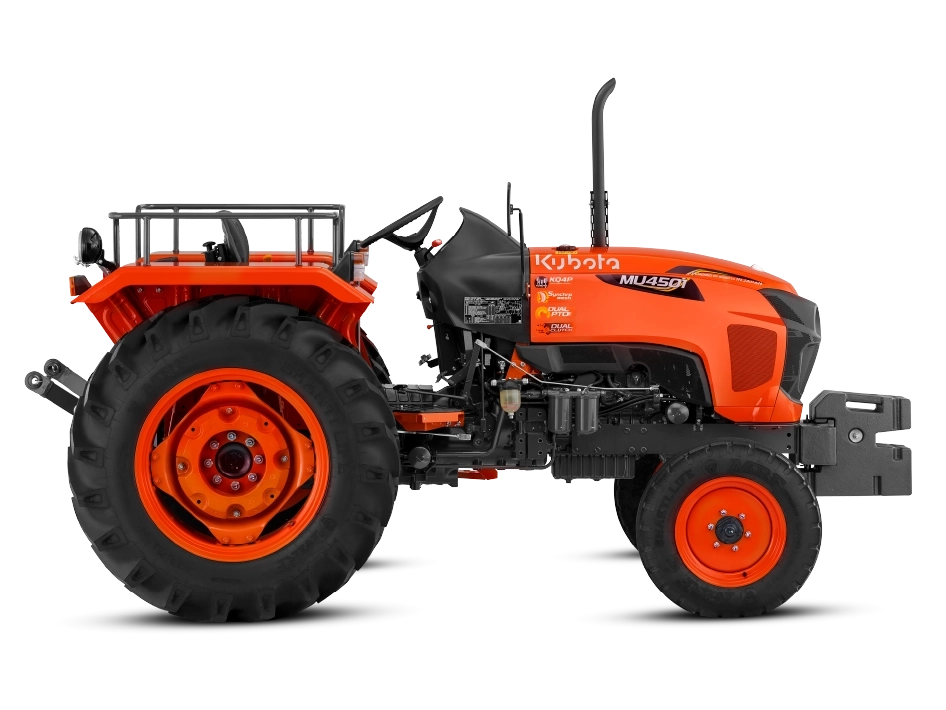

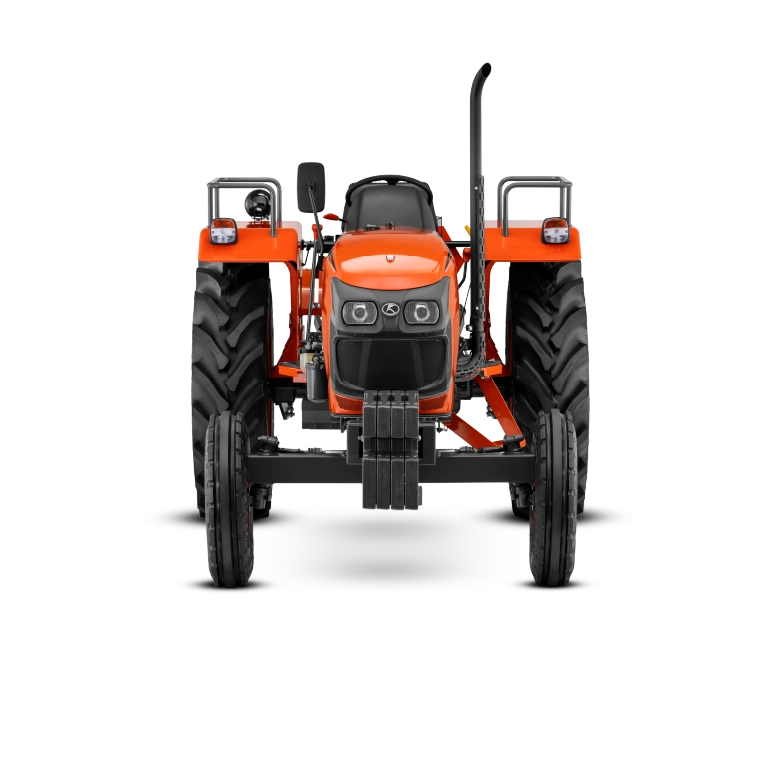

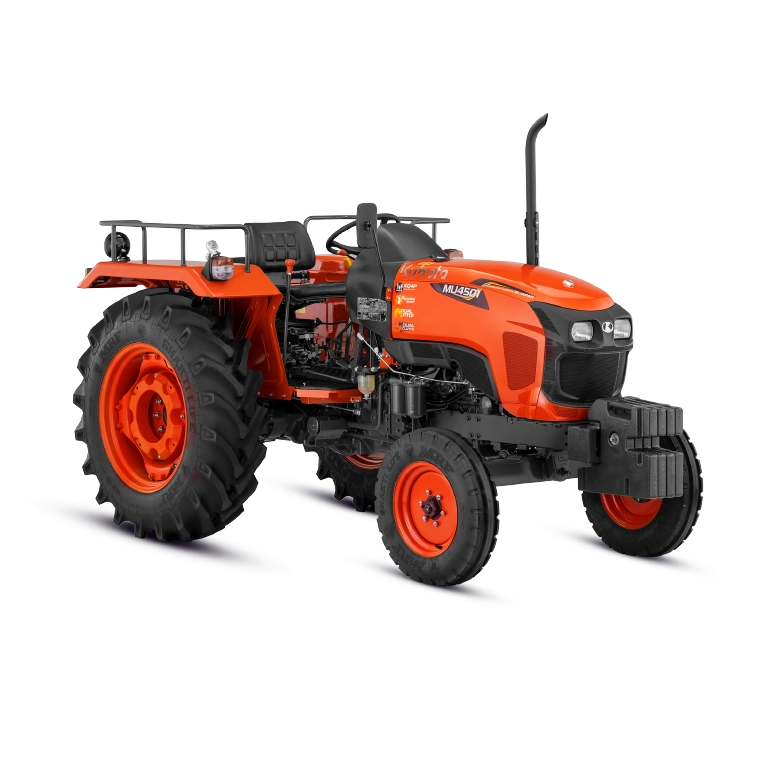

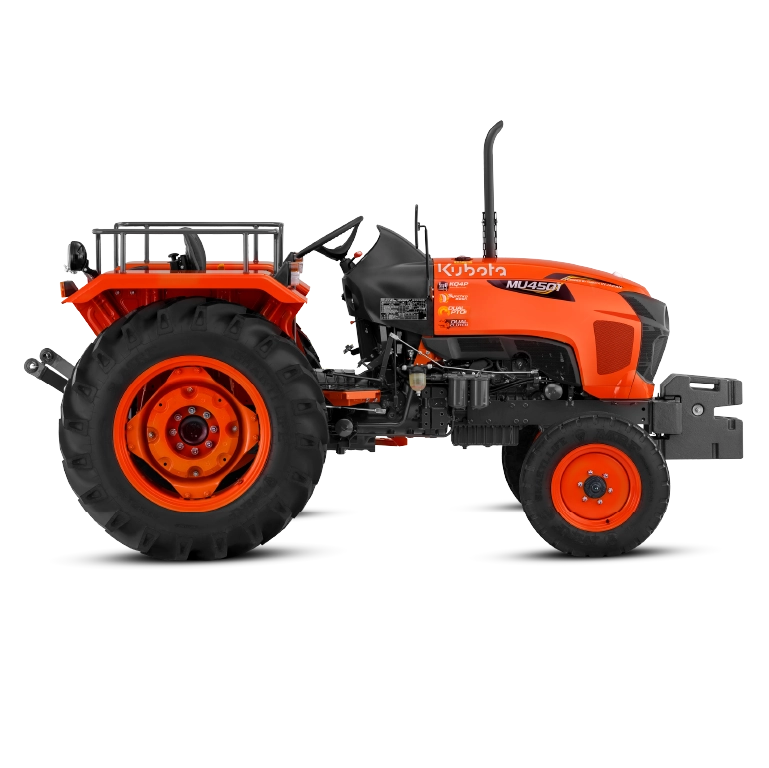

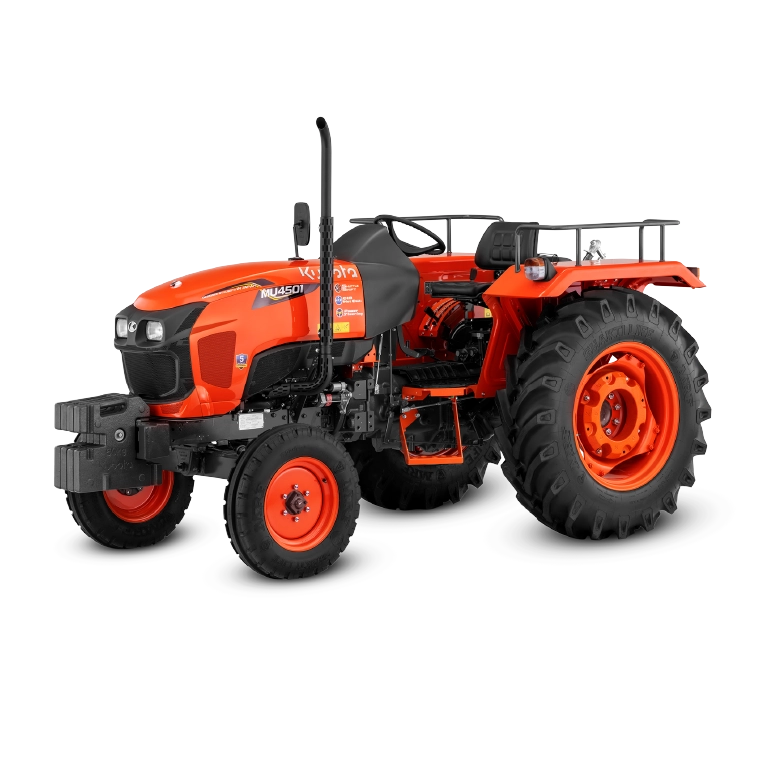

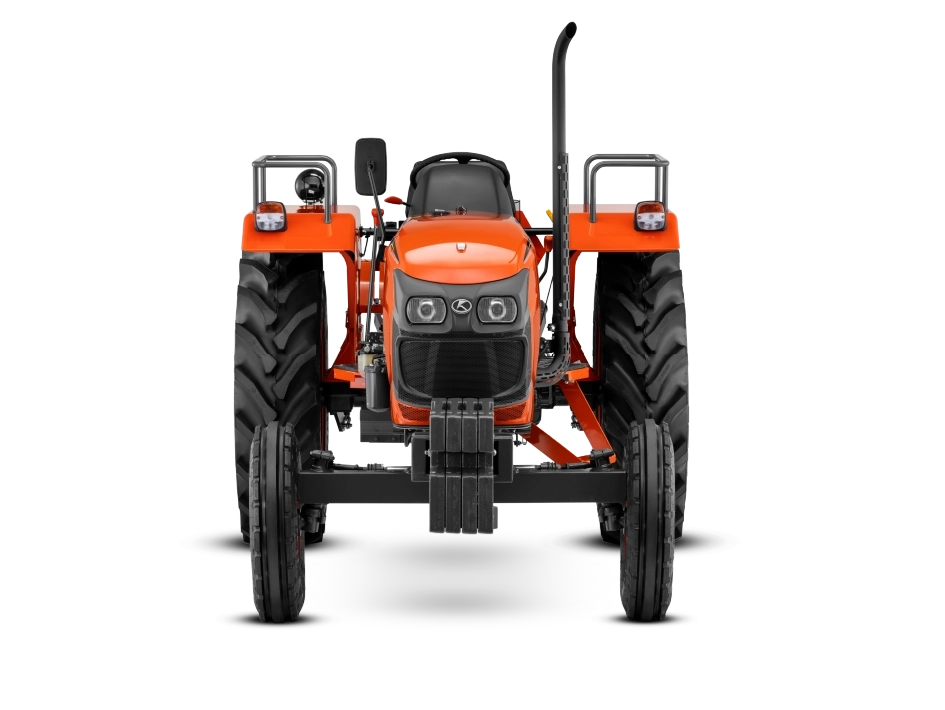

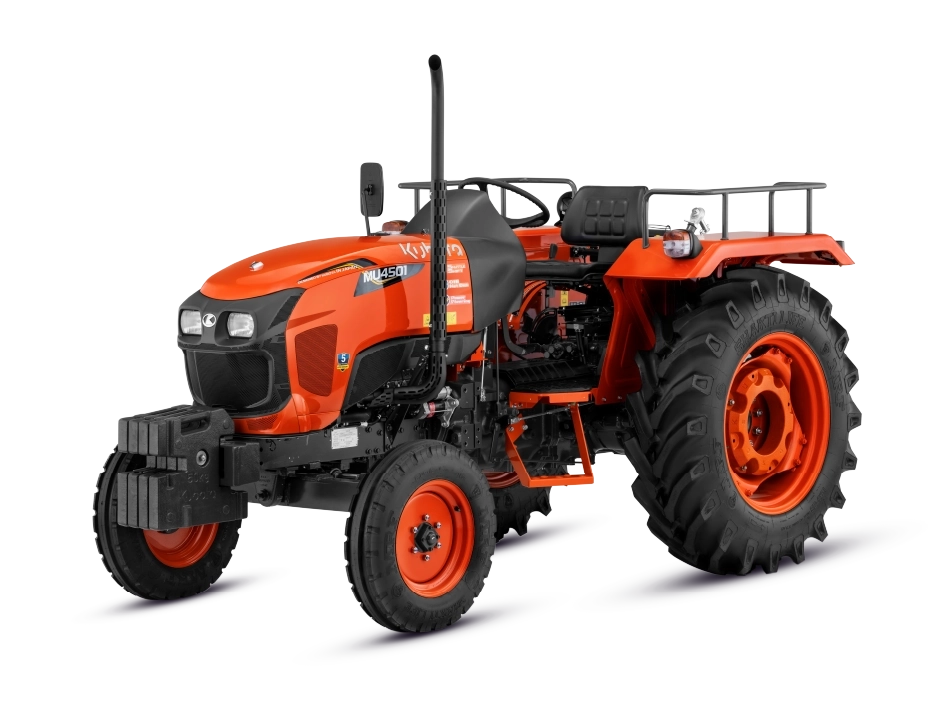

MU4501 2WD
- Home
- MU4501 2WD
Kubota MU4501 2WD – one of the best tractor model in the 45 hp category and farmers ideal choice when it comes to multi utility agricultural tasks like ploughing, cultivation, preparation of soil etc. Industry best features like balancer shaft, KQ4P made in Japan engine, synchromesh transmission makes it rare combination of power, durability and fuel efficiency.
KQ4P ENGINE
KQ4P Engine
MU4501 is equipped with Kubota Quad 4 Piston (KQ4P) engine, a extremely powerful, high fuel efficient 4 Cylinder engine with a narrow piston ring which reduces friction and ultimately improves fuel efficiency.
BALANCER SHAFT
Balancer Shaft
Two balancer shafts which rotates twice the engine speed to reduce overall Vibration and Noise of the Engine.
SYNCHROMESH TRANSMISSION
Synchromesh Transmission
MU4501 2WD is equipped with synchromesh main gear box in which synchronizer unit is provided for shifting instead of collar which results in less noise while shifting the gear. Smooth transmission of the gears also reduces wear and tear.
FRONT AXLE
Thickest Front Axle In Segment
Thickest axle in this segment
SINGLE PIECE BONNET
Single Piece Bonnet
Easy to Open & use with better accessibility to engine compartment
Engine Power
33.6 kW Cat. (45 HP Cat.)
Engine Displacement
2434 cc
Rear Tyre Size
14.9 x 28 Inch
KUBOTA MU4501-2WD
No. of Cylinders
4
Lift Capacity
1640 Kg
Transmission Type
8F + 4R Gear Shift
OTHER SPECIFICATIONS
| Category | Specification |
|---|---|
| Transmission | |
| Clutch | Double |
| Fuel Tank | |
| Fuel Tank Capacity | 60 litres |
| Brake Types | |
| Brakes | Oil immersed disc |
| Steering Type | |
| Steering | Hydraulic Double acting power steering |
| PTO Type | |
| PTO | Standard 540 |
| Tyres | |
| Front Tyre Size | (19.05 cm x 40.64 cm) 7.5 inch x 16 inch |
| Rear Tyre Size | (37.84 cm x 71.12 cm) 14.9 inch x 28 inch |
| Axle Type | |
| Front Axle Type | 2WD |
| Dimension | |
| Overall Width | 1865 mm |
| Overall Length | 3100 mm |
| Total Weight | 1850 Kg |
| Ground Clearance | 405 mm |
| Wheel Base | 1990 mm |
