MU4501 4WD
- Home
- MU4501 4WD
Power packed performance along with fuel efficiency possible with Kubota 4WD. Its advanced & practical features like Bevel gear, KQ4P fuel efficient engine, Balancer shaft makes MU4501 best 4WD tractor in 45 HP segment.
KQ4P ENGINE
KQ4P Engine
KQ4P engine features a large PTO output delivering a power saving performance even when undertaking heavy-duty operations. Its notably strong torque eliminates any fear of engine power drop even when subjected to a sudden load.
BEVEL GEAR
Bevel Gear
It will be an added advantage when working in tough soil conditions and application like plough and Sub soiler. The 4 wheel drive variant prevents slippage and also enhances the traction power of the tractor. The inside of the MU4501-4WD is equipped with Kubota original bevel gear system which enables tighter turns in field. Gear casing is totally sealed and constantly lubricated with oil, providing outstanding dust & water proof performance
BALANCER SHAFT
Balancer Shaft
Two balancer shafts which rotates twice the engine speed to reduce overall Vibration and Noise of the Engine.
SYNCHROMESH TRANSMISSION
Synchromesh Transmission
MU4501 4WD is equipped with synchromesh main gear box in which synchronizer unit is provided for shifting instead of collar. This results in less noise while shifting the gear. Smooth transmission of the gears also reduces wear and tear.
FLAT DECK & SUSPENDED PEDAL
Flat Deck & Suspended Pedal
Significantly more spacious with enhanced legroom and workspace, the full-flat deck makes it possible for the operator to be seated in the most comfortable body posture during operations.
Engine Power
33.6 kW Cat. (45 HP Cat.)
Engine Displacement
2434 cc
Rear Tyre Size
13.6 x 28 Inch

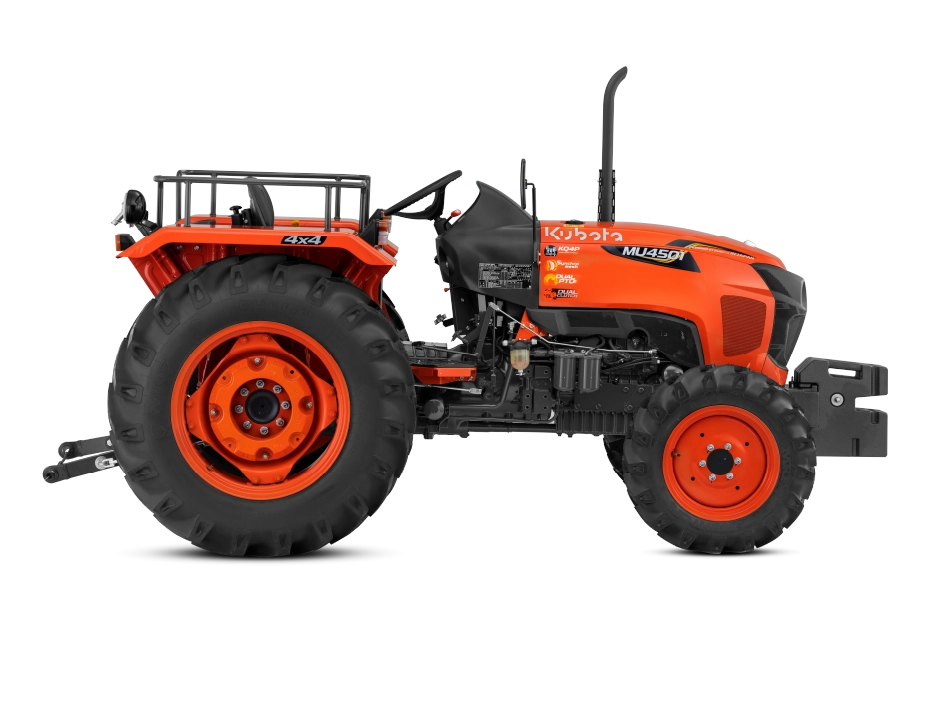

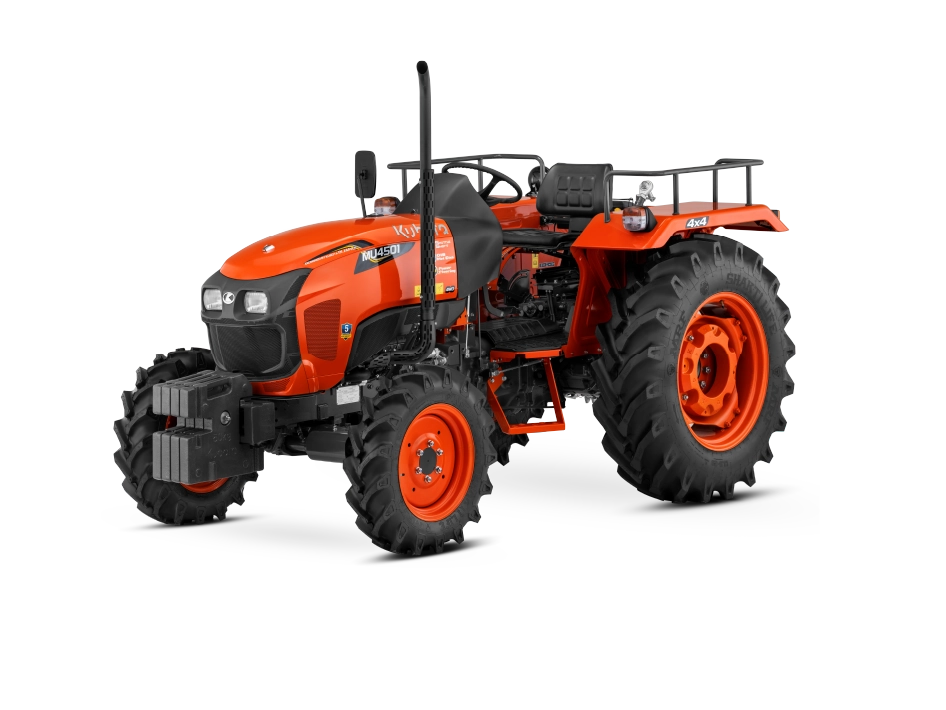

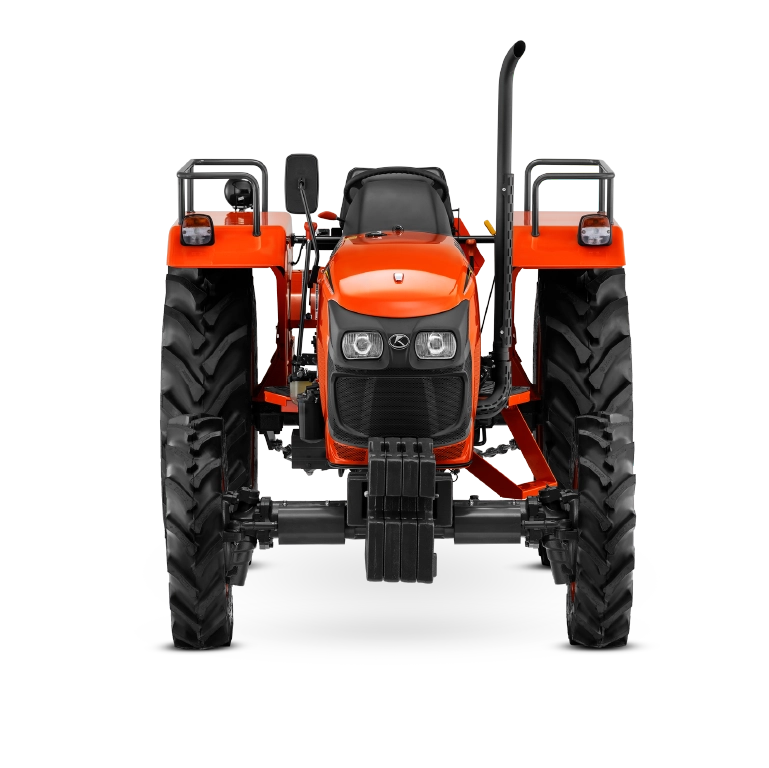

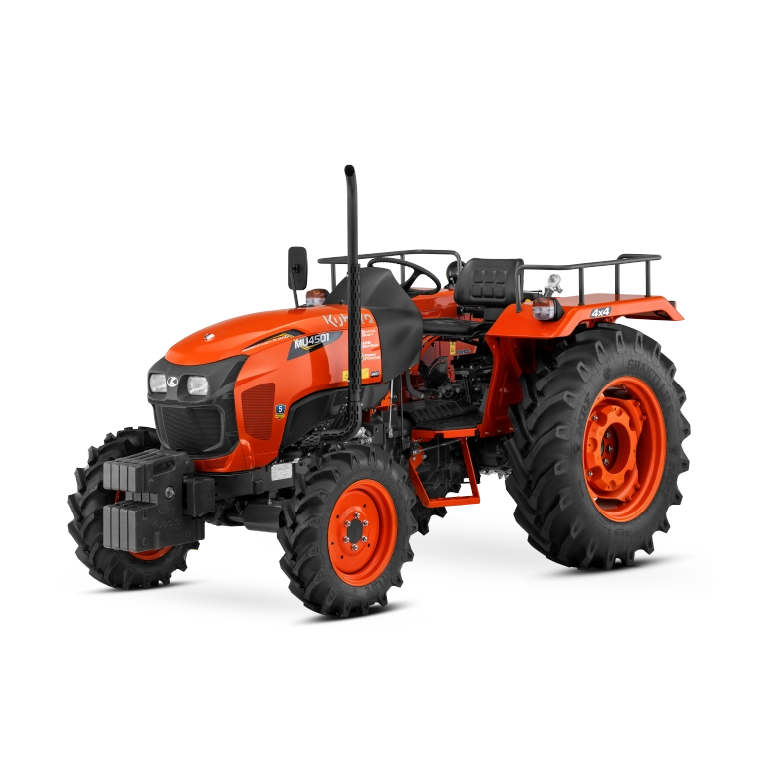

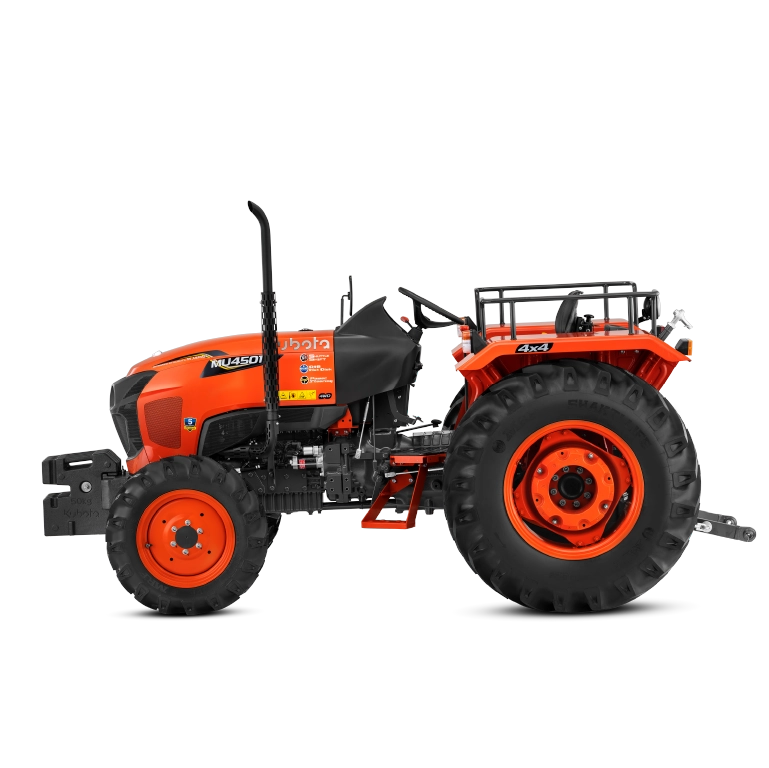

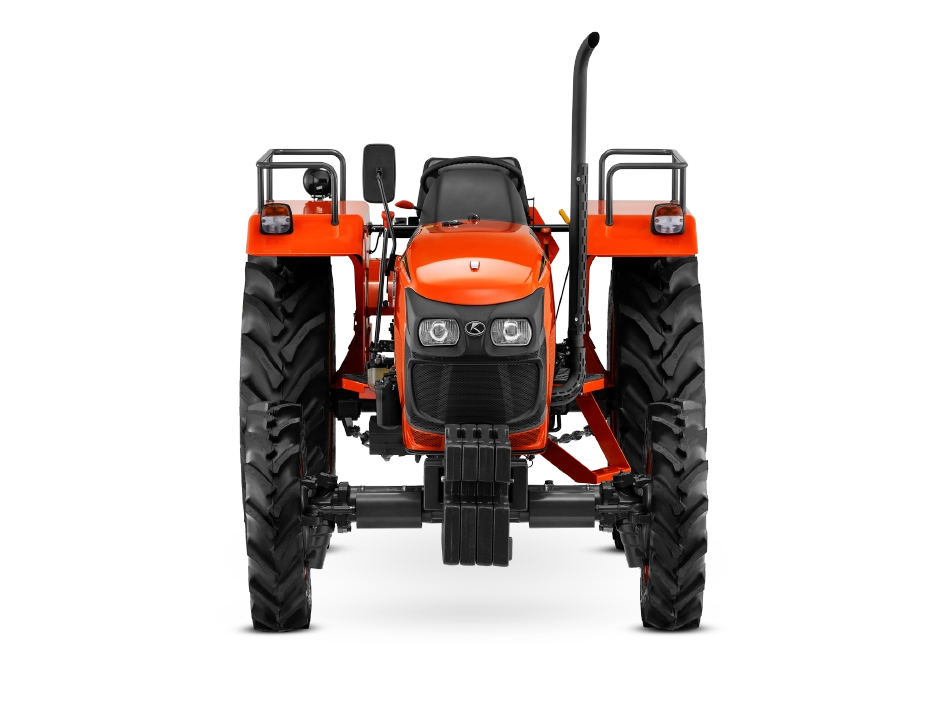

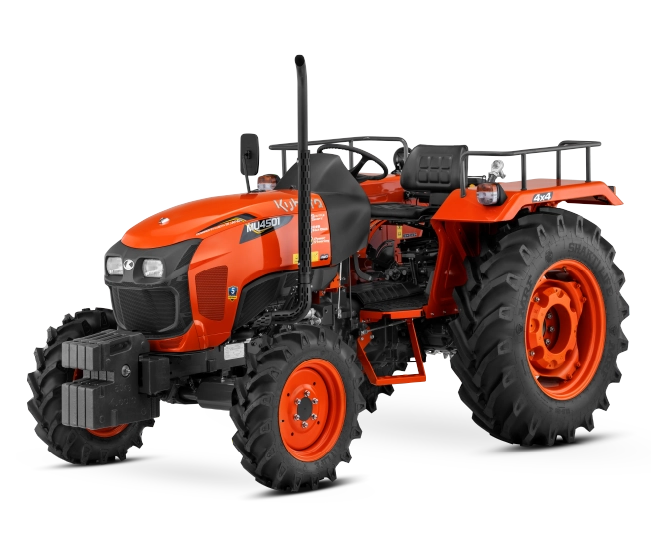

KUBOTA MU4501-4WD
No. of Cylinders
4
Lift Capacity
1640 Kg
Transmission Type
8F + 4R Gear Shift
OTHER SPECIFICATIONS
| Category | Specification |
|---|---|
| Transmission | |
| Clutch | Double |
| Fuel Tank | |
| Fuel Tank Capacity | 60 litres |
| Brake Types | |
| Brakes | Oil immersed disc |
| Steering Type | |
| Steering | Hydraulic Double acting power steering |
| PTO Type | |
| PTO | Standard 540 |
| Tyres | |
| Front Tyre Size | (20.32 cm x 45.72 cm) 8 inch x18 inch |
| Rear Tyre Size | (34.54 cm x 71.12 cm) 13.6 inch x 28 inch |
| Axle Type | |
| Front Axle Type | 4WD |
| Dimension | |
| Overall Width | 1870 mm |
| Overall Length | 3110 mm |
| Total Weight | 1970 Kg |
| Ground Clearance | 365 mm |
| Wheel Base | 1990 mm |
