MU5502 4WD
- Home
- MU5502 4WD

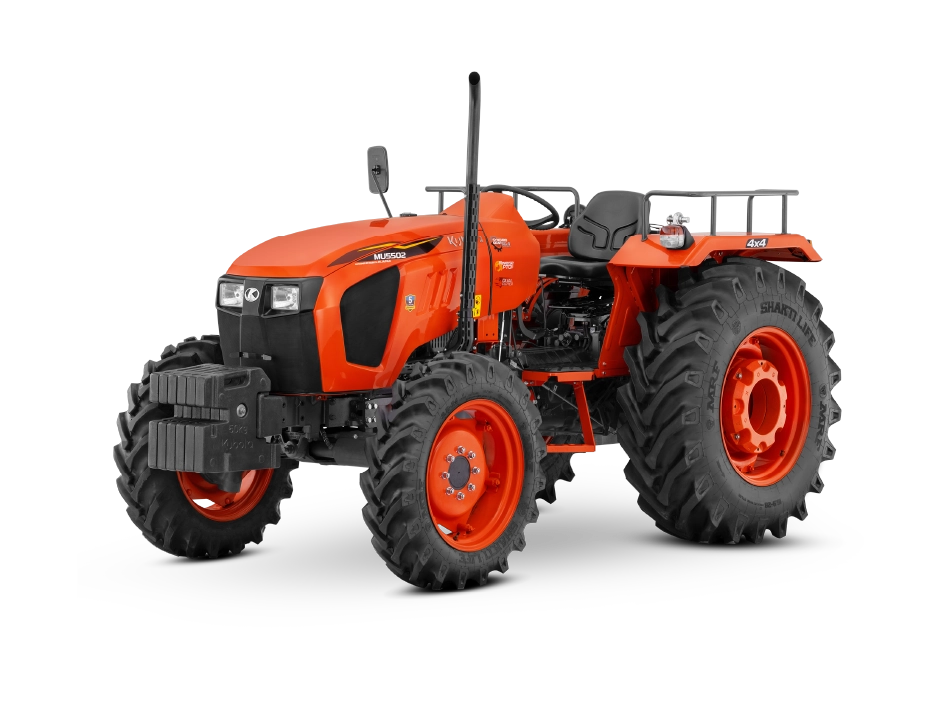

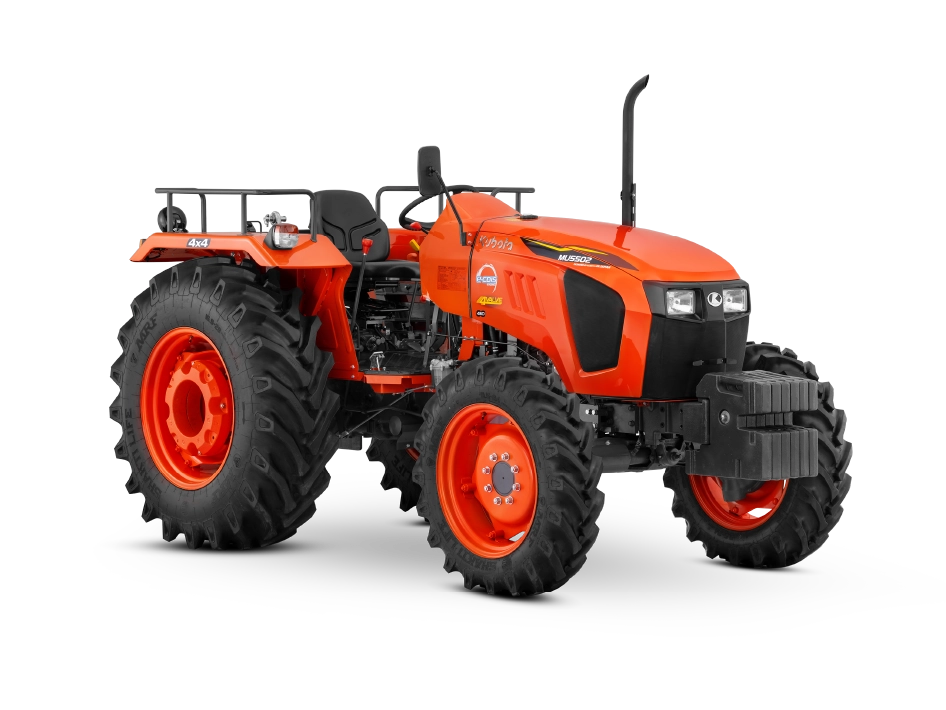

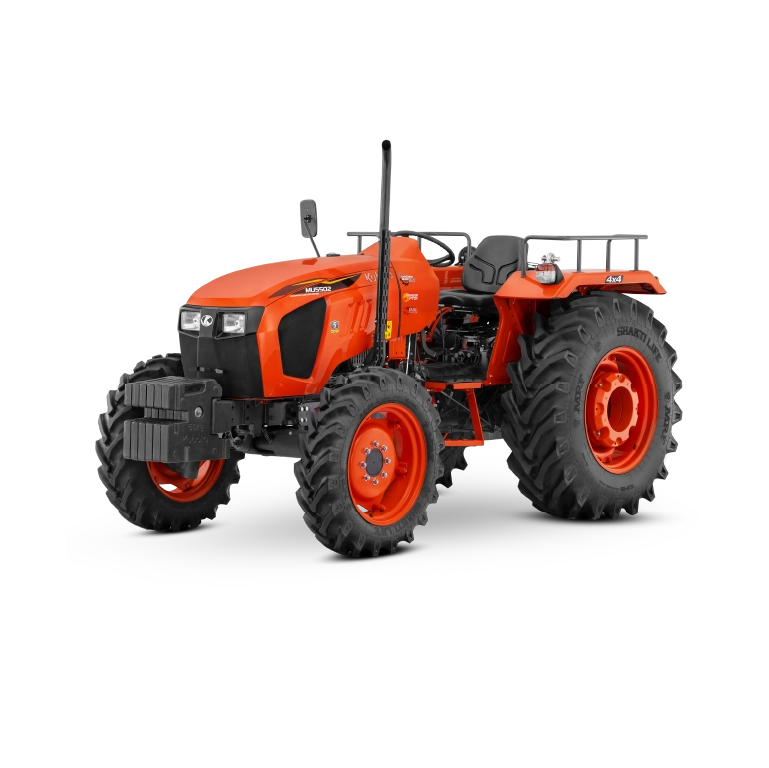

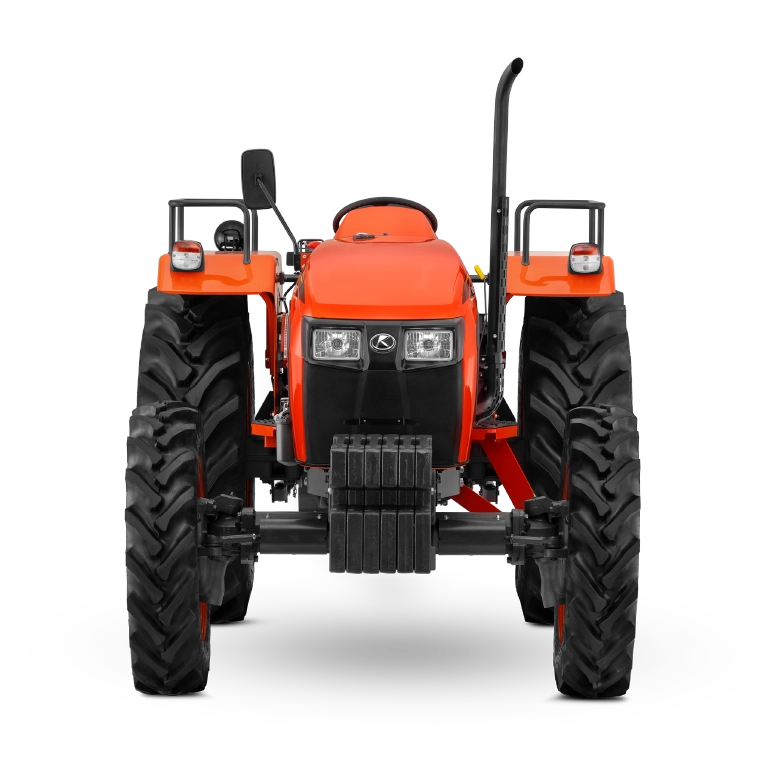

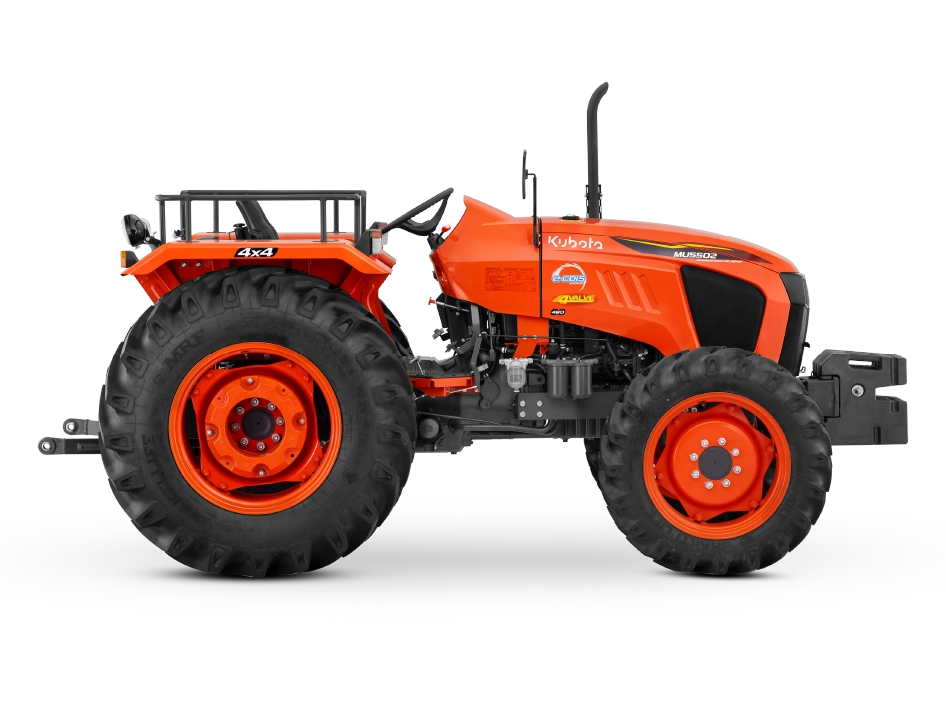

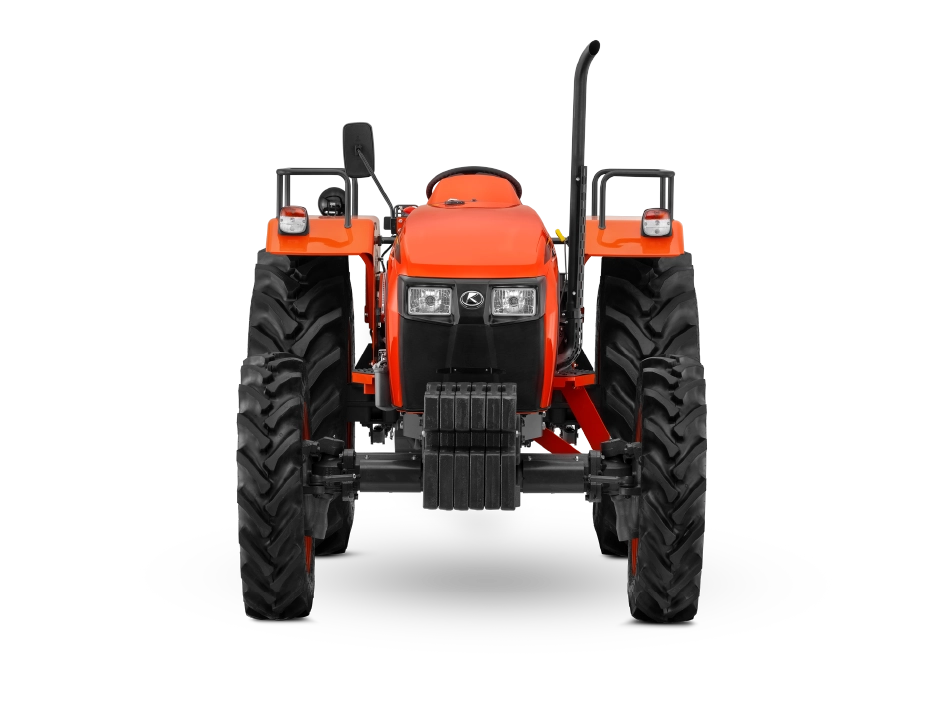

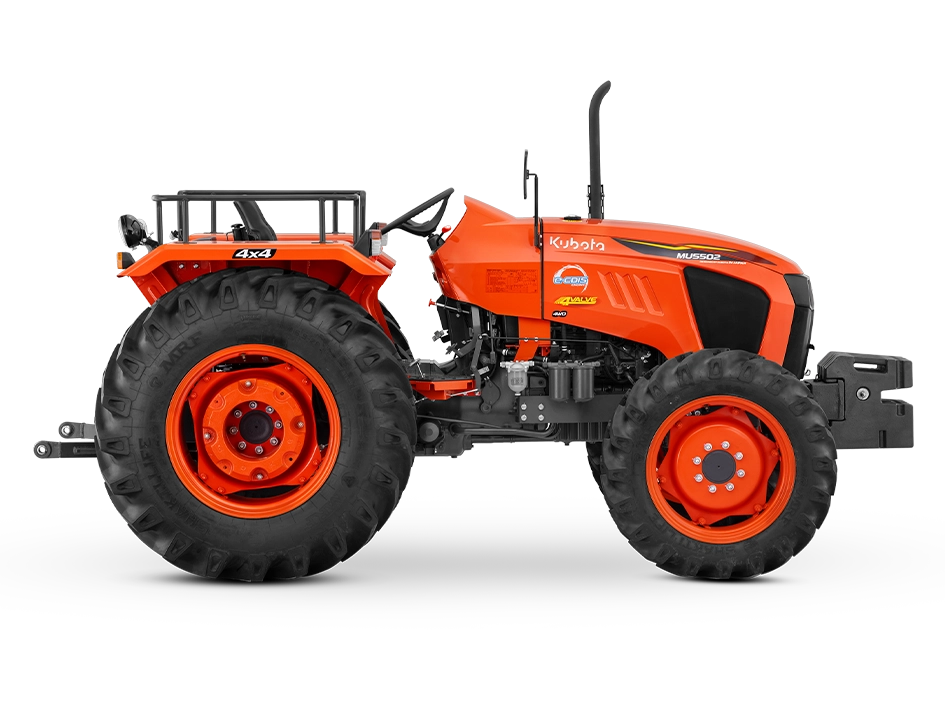

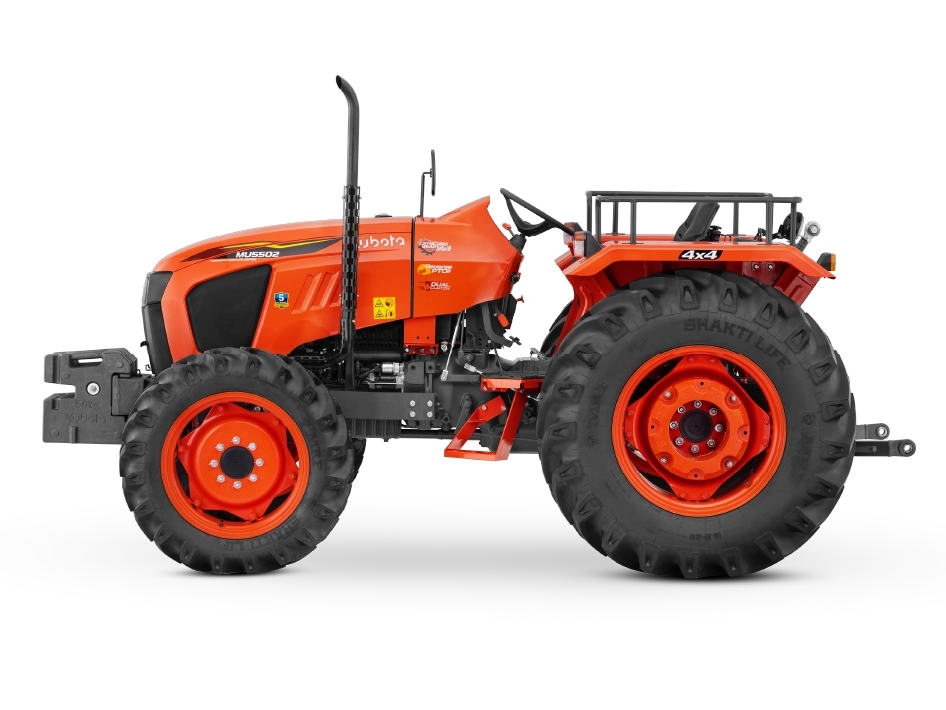

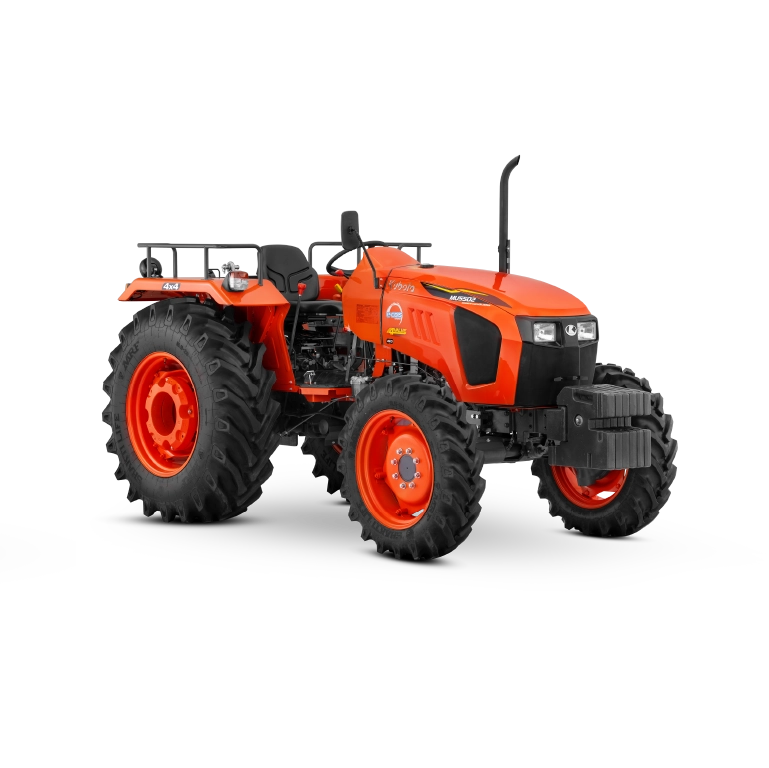

Kubota MU5502 – 4WD comes along with technically advance fuel efficient Kubota V2403-M-DI-TE3 Engine which provide performance with fuel efficiency.
BEVEL GEAR
Bevel Gear
It will be an added advantage when working in tough soil conditions in application like plough and Sub soiler. The 4 wheel drive variant prevents slippage and also enhances the traction power of the tractor. Inside of MU5502-4WD is equipped with Kubota original bevel gear system which enables tighter turns in field. Gear casing is totally sealed and constantly lubricated with oil, providing outstanding dust & water proof performance.
E-CDIS TECHNOLOGY
e-CDIS Technology Engine
Thanks to Kubota’s world renowned expertise in making E-CDIS technology, it delivers the most powerful and effective combustion and lesser fuel consumption. Version of DI engine is most advanced engine, the fuel injecting nozzles are located vertically compared to other tractors that come with inclined nozzles.
DUAL ACTING POWER STEERING
Dual Acting Power Steering
The turning performance of the double acting power steering is so smooth that it can be operated even with a single finger.
SYNCHRO GEAR
Synchro Gear Transmission
The durable synchronized transmission with synchromesh is noteworthy for its smooth, quiet shifting of gears.
BALANCER SHAFT
Balancer Shaft
Kubota's unique balancer shaft on both sides of the engine, which rotates the twice of the engine speed, opposite to each other and absorbs the vibration created by the engine so efficiently, that it hardly vibrates or makes any noise. As a result, farmers enjoy smoother operations for long hours without fatigue, plus reduced maintenance.
Engine Power
36.5 kW Cat. (55 HP Cat.)
Valve
4 Valve System
Rear Tyre Size
16.9 x 28 Inch
KUBOTA MU4501-2WD
No. of Cylinders
4
Lift Capacity
1800 Kg
Transmission Type
12F + 4R Gear Shift
OTHER SPECIFICATIONS
| Category | Specification |
|---|---|
| Transmission | |
| Clutch | Double |
| Fuel Tank | |
| Fuel Tank Capacity | 65 litres |
| Brake Types | |
| Brakes | Oil immersed disc |
| Steering Type | |
| Steering | Hydraulic Double acting power steering |
| PTO Type | |
| PTO | Standard 540 |
| Tyres | |
| Front Tyre Size | (24.13 cm x 60.96 cm) 9.5 inch x 24 inch |
| Rear Tyre Size | (42.92 cm x 71.12 cm) 16.9 inch x 28 inch |
| Axle Type | |
| Front Axle Type | 4WD |
| Dimension | |
| Overall Width | 1965 mm |
| Overall Length | 3715 mm |
| Total Weight | 2560 Kg |
| Ground Clearance | 420 mm |
| Wheel Base | 2050 mm |
